Visualization of Cellular Components in a Mammalian Cell with Liquid-Cell Transmission Electron Microscopy - Volume 23 Issue 1 - Stephanie Besztejan, Sercan Keskin, Stephanie Manz, Günther Kassier, Robert Bücker, Deybith Venegas-Rojas, Hoc K. Trieu, Andrea Rentmeister, R. J. Dwayne Miller

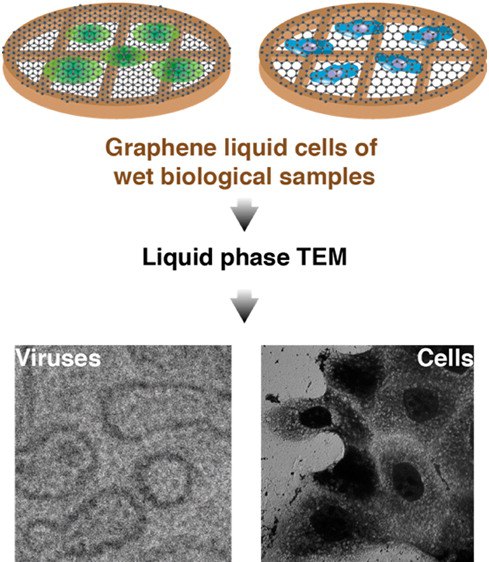

Recent development of liquid phase transmission electron microscopy (TEM) enables the study of specimens in wet ambient conditions within a liquid cell; however, direct structural observation of biological samples in their native solution using TEM is challenging since low-mass biomaterials embedded in a thick liquid layer of the host cell demonstrate low contrast. Furthermore, the integrity of delicate wet samples is easily compromised during typical sample preparation and TEM imaging. To overcome these limitations, we introduce a graphene liquid cell (GLC) using multilayer graphene sheets to reliably encapsulate and preserve biological samples in a liquid for TEM observation. We achieve nanometer scale spatial resolution with high contrast using low-dose TEM at room temperature, and we use the GLC to directly observe the structure of influenza viruses in their native buffer solution at room temperature. The GLC is further extended to investigate whole cells in wet conditions using TEM. We also demonstrate the…
