In this paper, we propose a deep neural network model with an encoder–decoder architecture that translates images of math formulas into their LaTeX markup sequences. The encoder is a convolutional neural network that transforms images into a group of feature maps. To better capture the spatial relationships of math symbols, the feature maps are augmented with 2D positional encoding before being unfolded into a vector. The decoder is a stacked bidirectional long short-term memory model integrated with the soft attention mechanism, which works as a language model to translate the encoder output into a sequence of LaTeX tokens. The neural network is trained in two steps. The first step is token-level training using the maximum likelihood estimation as the objective function. At completion of the token-level training, the sequence-level training objective function is employed to optimize the overall model based on the policy gradient algorithm from reinforcement learning. Our design also overcomes the exposure bias…

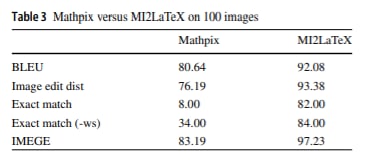

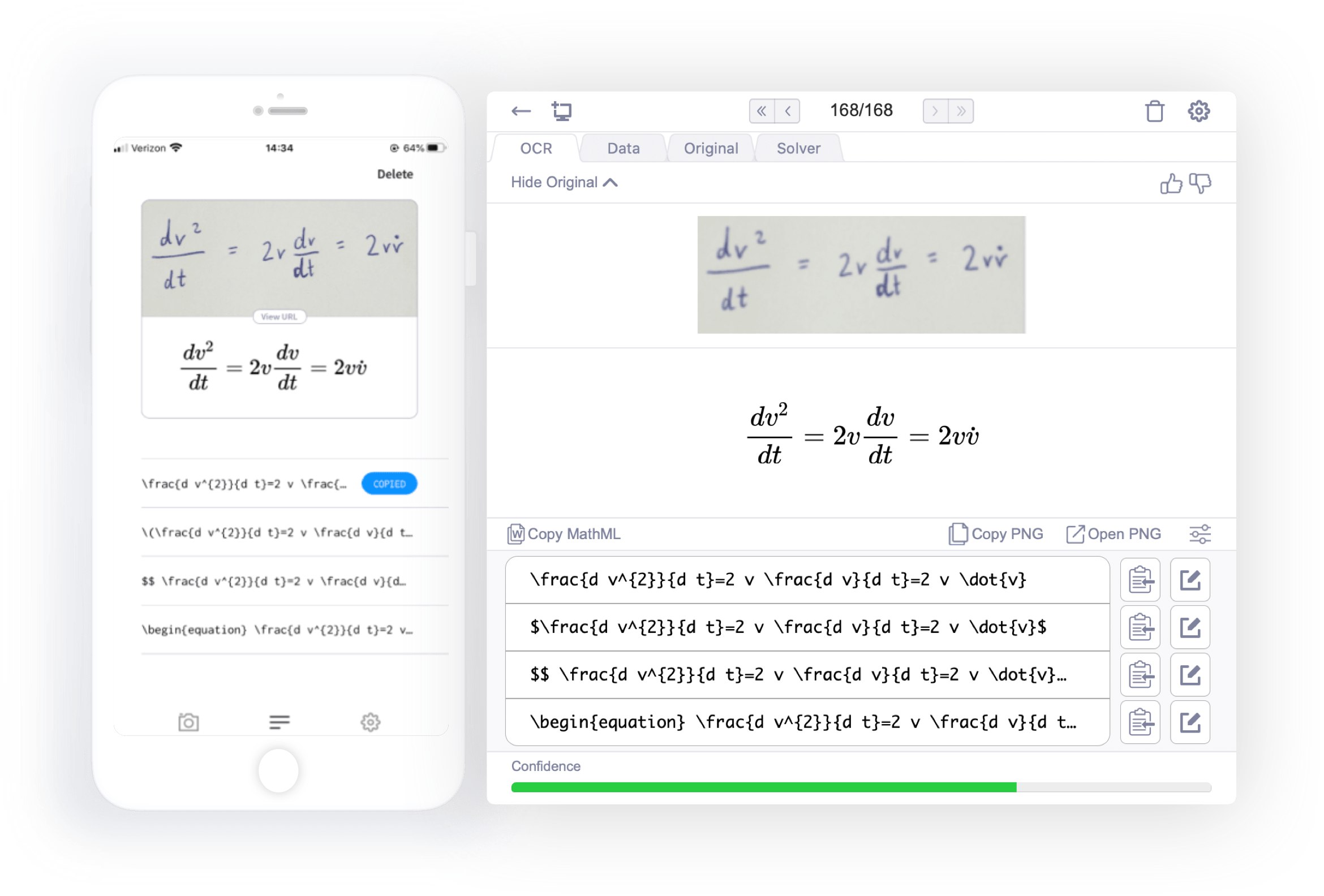

Do you spend a lot of time typing equations in LaTeX? Try Mathpix Snip for iOS, Android, macOS, Windows or Linux and start converting images to LaTeX instantly!
