The HEICO group, based in the town of Ense in Westphalia, Germany, is a family-owned business with a long tradition.
The company has been working passionately in the field of fastening technology since 1900. HEICO operates internationally with multiple company sites strategically located throughout the world. The group offers the highest degree of technical support and individual testing options.

---------------------------

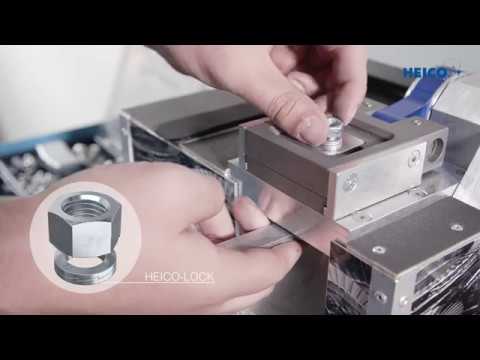

An important feature of the HEICO-LOCK® wedge locking systems, setting them apart from other systems that are available, is the securing of the bolt fastening using preload force rather than friction.

• Wedge-shaped cams on the inside of the lock washers, radial teeth on the outside

• Interlocking embedding of the radial teeth with the respective mating Surface (when tightening the bolted joint)

• System movement only possible between the inner wedge shaped cams. Movement across these wedge shaped surfaces effectively self locks the bolt.

• Increase in clamping force

--------------…

The Junker vibration test in accordance with DIN 65 151 is a proven method of testing the safety of threaded connections when exposed to vibrations and dynamic loads. During the Junker test, the fasteners are tightened to a defined preload force and are then exposed to a dynamic lateral load. The preload force is continuously recorded while the load is applied.

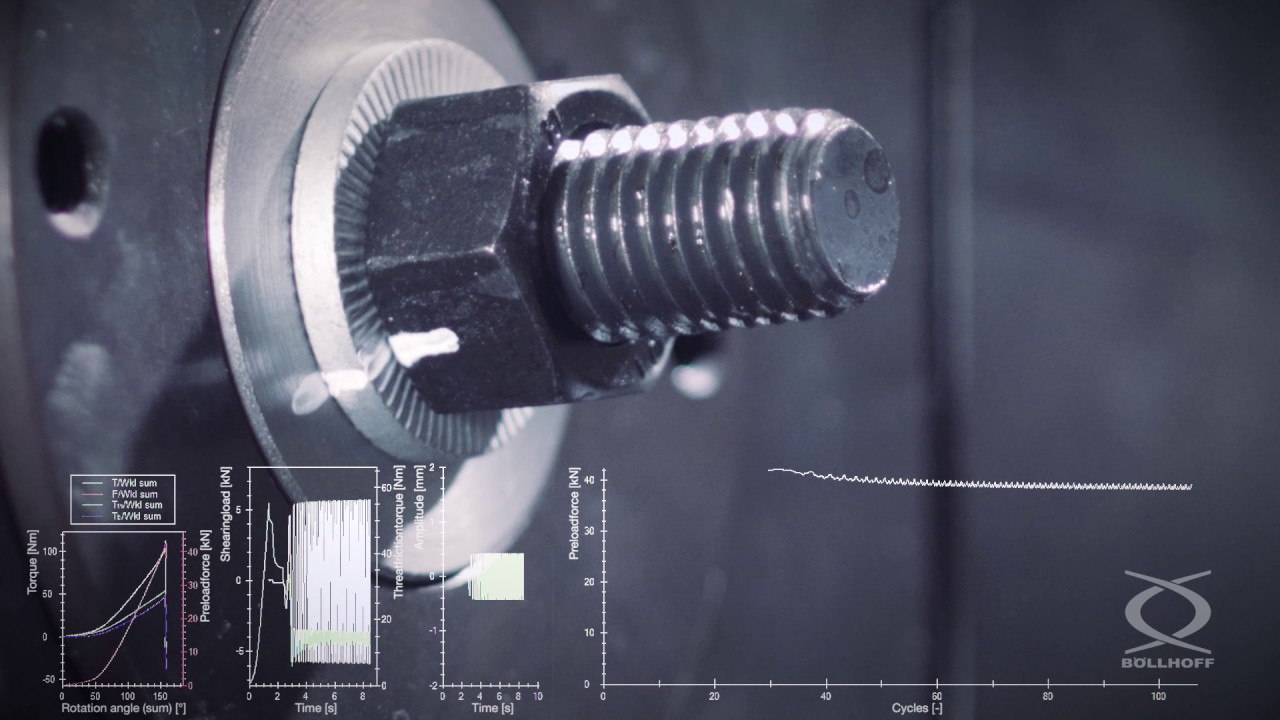

The video shows the performance of the RIPP LOCK® washer and RIPP LOCK® nut in comparison to the spring wahser DIN 127 and to an unsecured threaded connection. The preload force is shown in the diagram on the left side. In addition, the starting position is marked.

The preload force in the connection with RIPP LOCK® was maintained at above 80%, which means that it passed the test without any problems. Connections that are not secured sufficiently loosen resulting in a reduction of the preload force.
