A
are there any testpoints on the board? they should have some way to flash the damn thing at the factory
Flash-over-the-air :DD
Size: a a a
2020 December 25
MS
are there any testpoints on the board? they should have some way to flash the damn thing at the factory
They can flash it to put chip in special device without soldering
L
They can flash it to put chip in special device without soldering
... and then put the chips back to the reel to feed it to the pick-n-place machine? sounds not very probable
L
for high-volume products, they might have ordered to pre-program firmware from the MCU manufacturer
MS
... and then put the chips back to the reel to feed it to the pick-n-place machine? sounds not very probable
All stm32 chips have preinstalled bootloader, how are they do it?)
MS
for high-volume products, they might have ordered to pre-program firmware from the MCU manufacturer
Agree
L
All stm32 chips have preinstalled bootloader, how are they do it?)
it's not "preinstalled", it's physically hardwired in the ROM, my guess is they have it as a part of photomasks
L
but the IC manufacturer anyway tests all the chips before packing, they might as well put some firmware in the same operation
A
На CYW20730 даже доки в открытый доступ не выложены.
A
Элеонора , Вы HR?
D•
A
Она бот
Улетела
S
are there any testpoints on the board? they should have some way to flash the damn thing at the factory
no
L

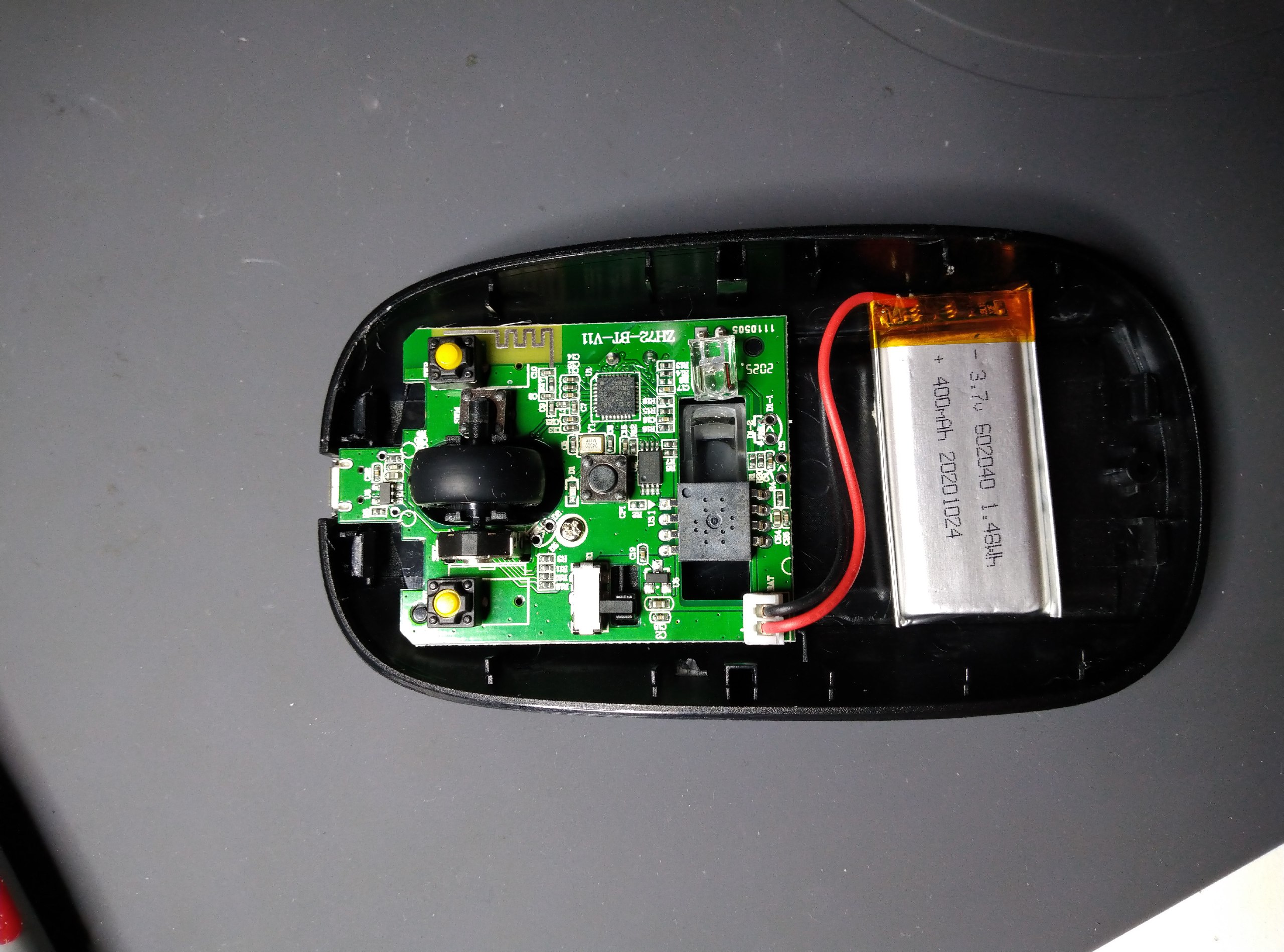

i see some unpopulated through holes, but they don't look like something related to programming, maybe provisions for some other models, like LED or extra buttons.
how about back side of the board?
how about back side of the board?
S
i see some unpopulated through holes, but they don't look like something related to programming, maybe provisions for some other models, like LED or extra buttons.
how about back side of the board?
how about back side of the board?
both are connected to diodes
LZ

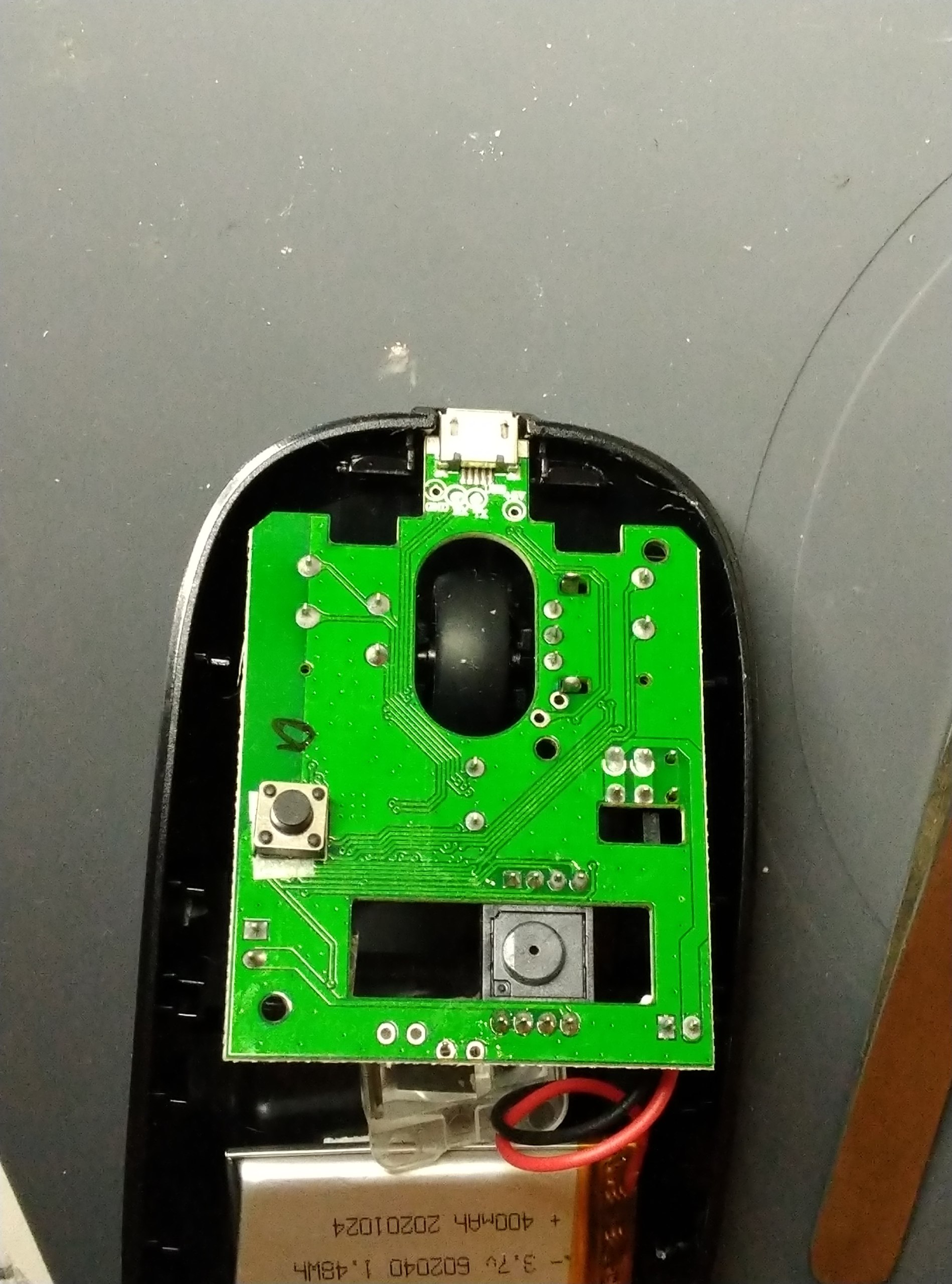

how about bottom side?
S
L
there some rx/tx pads near the usb connector
S
usb d+/d- is connected to pin 12/13 (uart)
s
lol
serial bootrom, this is not usb
serial bootrom, this is not usb
