Building my MPCNC 2019

Leave a like to Support me in the #XYZCHALLENGE

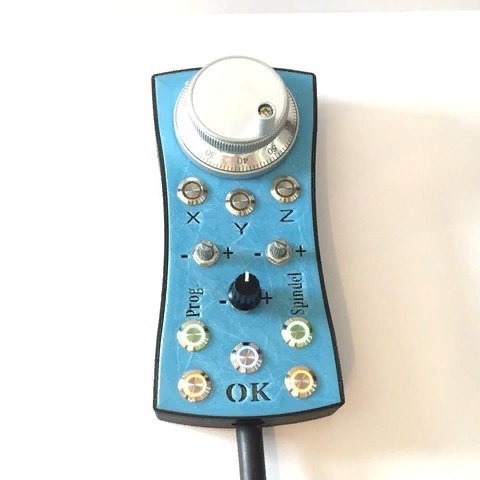

This is my smaller Version of the pretty common Handheld Housing .
Also if you print those Inlays in White its possible to add also a Backlight .

I used Lightened Switches form Aliexpress. 60mm Rotary Encoder and the Potis are also from Aliexpress. So youll get a pretty awesome Controller for your CNC for less than 50 $.

I still wait for the last Parts to make it perfect. I will show more Pictures when its done.

Feel Free to contact me if you have some Ideas to make it better.

I wired it up to use it with the Arduino Mega 2560 and with Estlcam. Its pretty awesome.

Encoder -https://de.banggood.com/custlink/DDmDJyDppi (5 Volts needed)
Push Buttons - https://short1.link/evrUDZ (5 Volts needed)
Push Buttons Update 12V - https://de.banggood.com/custlink/G3vKCdGdfO (will change to 12V because of my housing lightning)
Arduino Mega on Sale NOW - https://de.banggood.com/custlink/Gvv3phvWGI
Endstops i use - https://de.ban…
