Last updated: Mar. 18, 2021 (see Change log section near the bottom of this post)
A simple, lightweight, compact, and easy to print direct drive mount for BMG extruders, V6 hotends, and ABL setups. This is compatible with open carriage printers such as an  Ender 3 (Pro), Tevo Tornado, Alfawise U20, etc.
This excellent design is originally made by Adolf_Muffin, but I made a couple of improvements:
M3 nut mounting holes and screws.
Better BLTouch mount - the original was fragile and it would hit the tension belt adjuster at max X.
Better cable route on Carriage Mount -  moved the original cable route from the right to the left.
List of screws and nuts needed.
Guides for Slicing, Assembly, Firmware Config, and Calibration.
— — — — — — — — — — — — — — — — — — — — — — — — — —
Check out the remixes for different machines:
Tronxy X5S by SoDakDave
Ender 3 V2 by db9mat ¹
CR-10 V2/V3 by IssaP
For 18mm EZABL / Capacitive Probes
Check out CephDigital's remix!
His post includes probe offsets and other important details!…

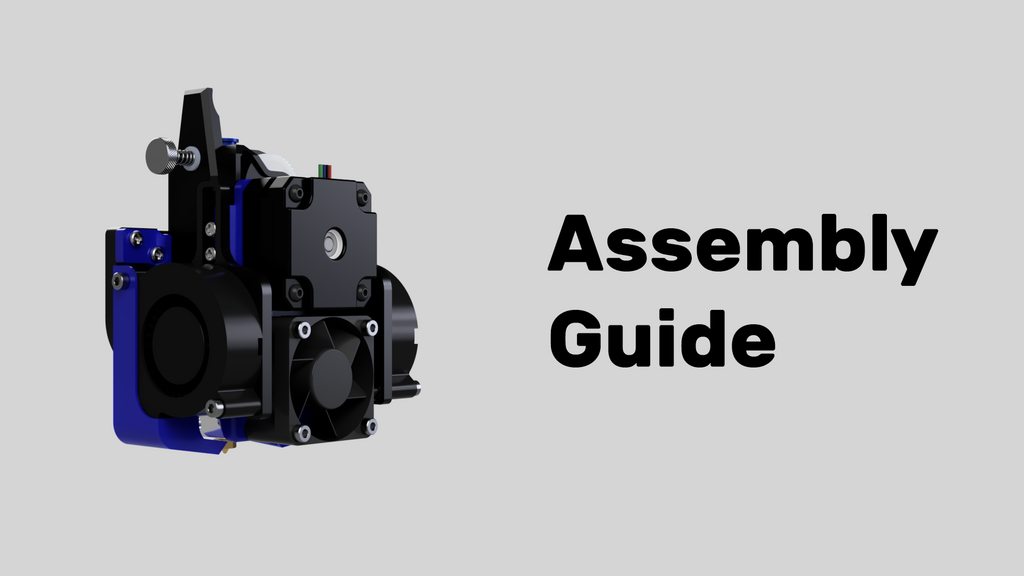

Post with 1610 views. Assemby Guide for BMG + V6 + ABL Direct Drive Extruder

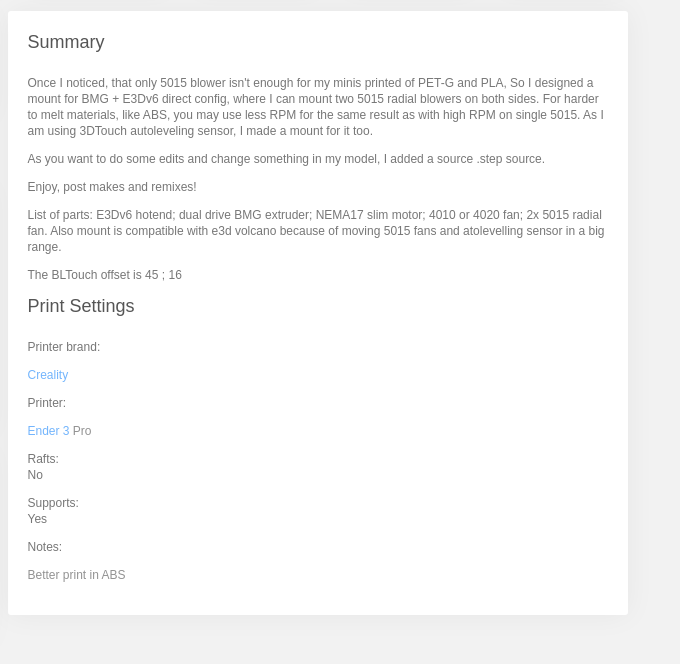

Once I noticed, that only 5015 blower isn't enough for my minis printed of PET-G and PLA, So I designed a mount for BMG + E3Dv6 direct config, where I can mount two 5015 radial blowers on both sides. For harder to melt materials, like ABS, you may use less RPM for the same result as with high RPM on single 5015. As I am using 3DTouch autoleveling sensor, I made a mount for it too.
As you want to do some edits and change something in my model, I added a source .step source.
Enjoy, post makes and remixes!
List of parts: E3Dv6 hotend; dual drive BMG extruder; NEMA17 slim motor; 4010 or 4020 fan; 2x 5015 radial fan. Also mount is compatible with e3d volcano because of moving 5015 fans and atolevelling sensor in a big range.
The BLTouch offset is 45 ; 16
