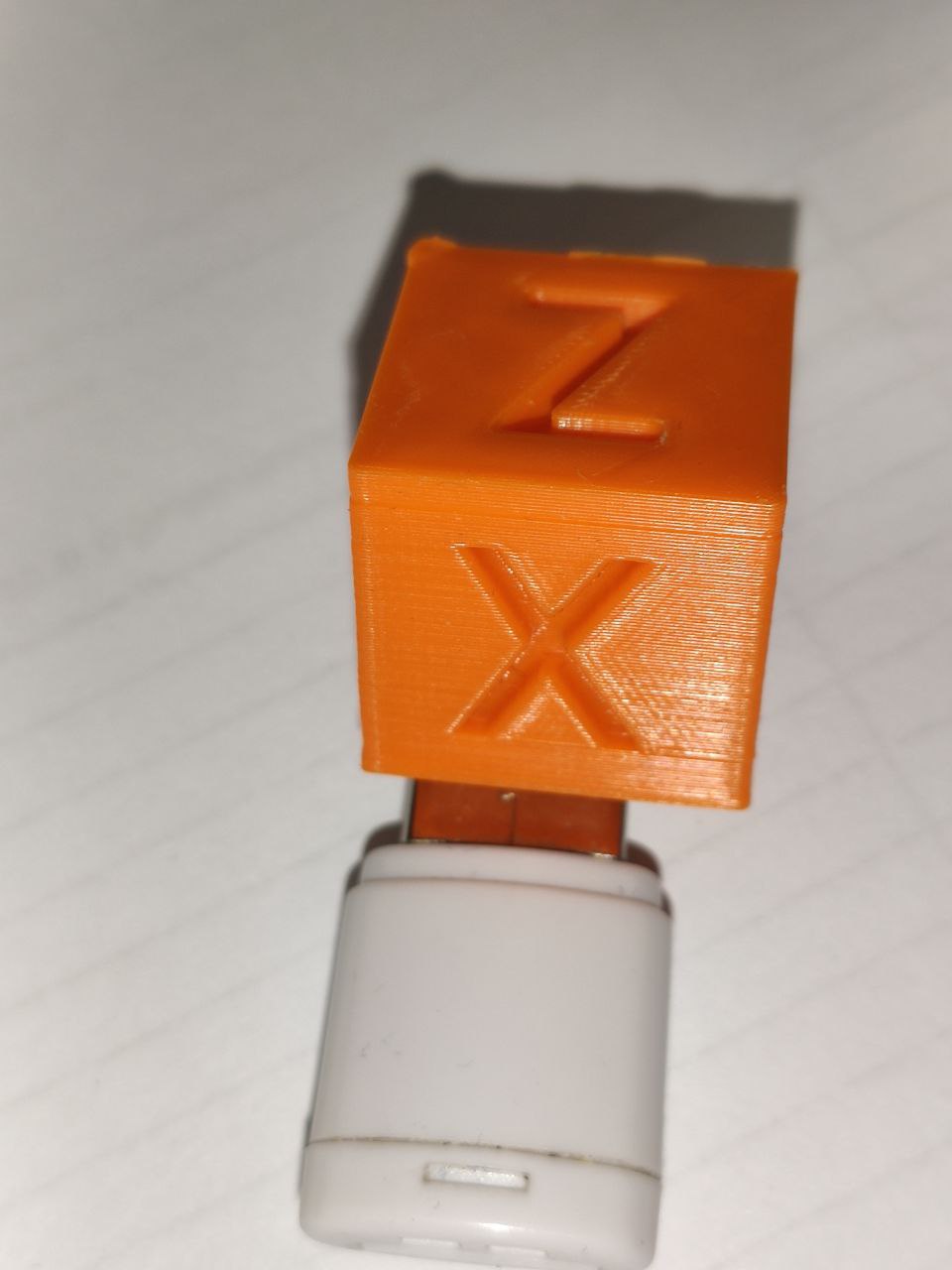

2020-08-17 Thank you all for your great feedback! I will incorporate some (minor) design changes this week to implement those improvements. It would be great if you could let me know, how the "00 Tester" parts work on your printer! Thank you
Remarks - Please Read :)

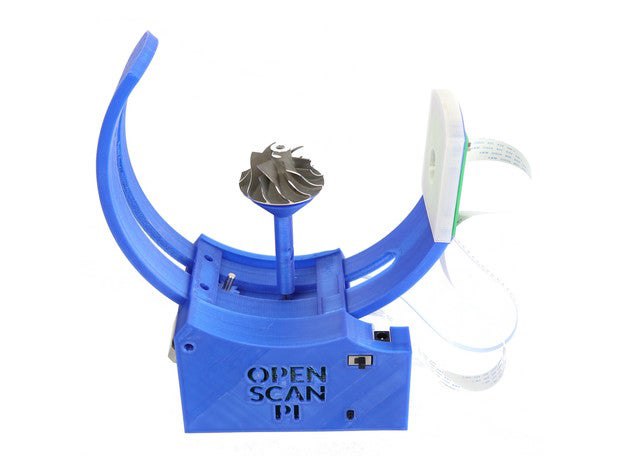

Even though I went through several iterations, the parts might need to be change in the future! The build instruction is available here: https://en.openscan.eu/openscan-mini
The scanner works with the existing OpenScan Pi Shield (see: https://en.openscan.eu/pi-shield but you could also use a plain Raspberry Pi + breadboard with the existing pi-image provided on my website.
If you like my work and want to support the project and further developments, you can support me via: http://buymeacoffee.com/openscan
Bill of Material:
Raspberry Pi 3B+ or 4
Pi Camera v2.1 (8mpx) with 50cm ribbon cable
OpenScan Ringlight + 50cm JST-XH 3P cable
OpenScan Pi Shield
Nema 17 Stepper Motor
2x A4988 Stepper driver
12V 2A Power Supply
25x M3x8mm
All those parts are available…
