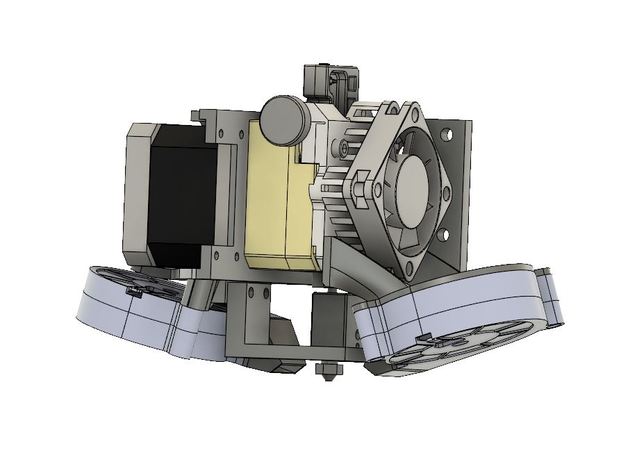

Prepare for massive extrusionrates and high quality prints with this E3D Titan Aero and Volcano Combo.
Intended to be used with two 50mm radial coolingfans.
X-axis enstop cables need to be directly soldered to the endstop and the extrudermotor cables need to be extended.
Longer screws for the Titan Aero are needed. 1 M3x30, 2 M3x40
Since the Chiron has optical Z-endstops, you will need to print the endstop extender of  non-translucent filament (preferable Black) with 100% Infill, otherwise the lightswitch will not work. Definetly have an eye on correct z-homing.
Proper way would be to raise your endstops and adjust your firmware settings.
Make sure to print this out of ABS or the parts WILL come loose.
As slicer software I'd recommend Slic3er over Cura, but either way make sure to trim down your accelerations and printjerk, because of the higher weight of the printhead
