Spool Winder
Spool winder for filament and other spools with a maximum dimension of 210mm in diameter and 76mm wide. If the spool axle is inset then wider spools may be accommodated. Spools should be a minimum of 30mm wide with an axle hole not smaller than 16mm diameter.
One turn of the handle gives two turns of the spool.
The winder is parts compatible with my spool holder which also includes jointing pieces to join multiple spool holders together. See my thing:3823334.
Please note that the treads on the spool axle are designed to stop the nut becoming unscrewed as you wind.
Printing

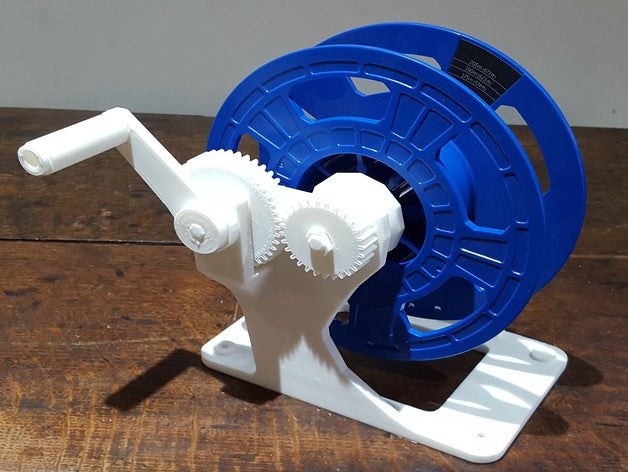

I provide files for the frame to suit either right or left handed people (the right-hand configuration is shown in the images). If printing the left handed frame you will also need the left handed spool axle and left handed spool axle nut.
All the other files need to be printed except the centring discs where you inly need to print ones which correspond with (or are slightly smaller than) your spool's axle hole.
Also I provide…
