This design is avaible under GPL v3.0 (not GPL v2.0 as thiniverse states). This is for compatibility with licenses of both ender 3 and voron afterburner.

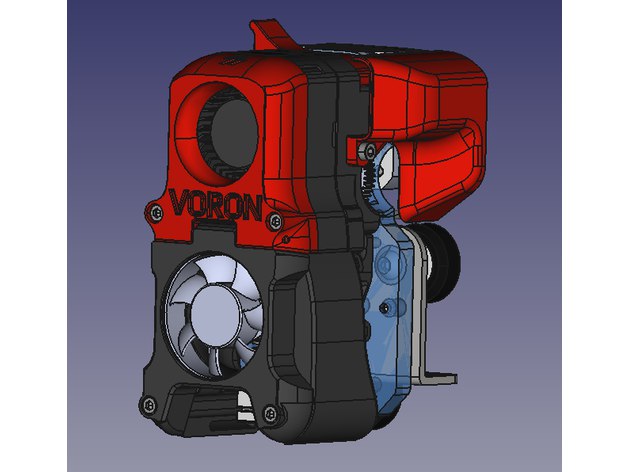

Hi. This is another mount for voron afterburner to ender 3. Compared to other mounts, it reduces the Y range the least and is most rigid (as of September 2020). There is a price to pay, and that is a change to the afterburner design: a new motor plate.
It is compatible with afterburner as of commit 731dceba If afterburber design changes, it may need an adaptation so watch out.
The designs for ender 3,  ender 3 pro and ender 3 v2 are different, because they have slightly different X carriage plates. I have only tested the pro version because this is what I have. If you test other versions, let me know if they fit well.
You need a slim nema17 motor, otherwise it may hit Ender's z profiles. By reports in Voron discord, 23mm fits fine. (The spec motor for afterburner is 20mm.)
BOM is everything you need for an afterburner plus m3 screws and m3 heat inserts (see…
