Update:19\06\20 Uploaded Step File.
Jan 2020: It may be worth checking out my latest design - Hydra Fan Duct & Tool Change System which IMHO is far better in a lot of ways than this Hero Me remix. Link: https://www.thingiverse.com/thing:4062242
Update 04_10_19
Uploaded a Bridged 5015 duct with BL touch Mount, included BL Touch and EZABL fixing plates. I do not use levelling sensors so these are all WIP.
Update: 26_09_19
Re uploaded Direct Drive Bracket Base System 2_V1 with the correct print orientation.
Update: 26_09_19
Re uploaded X Cap_V1 with the correct print orientation.

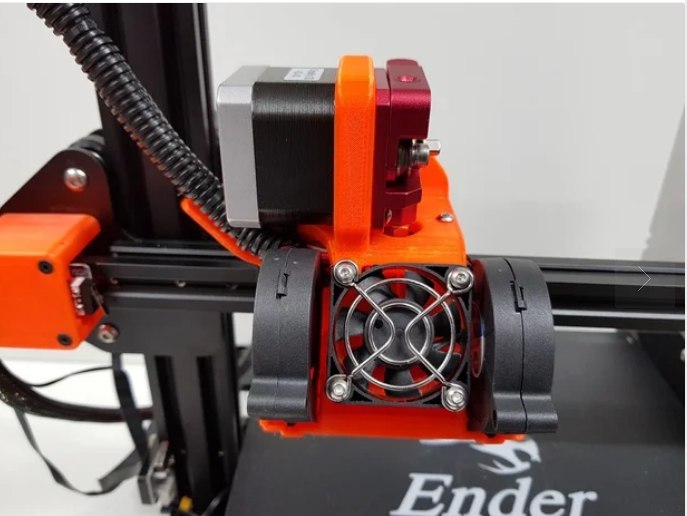

This is a combined remix of napfkuchen`s fabulously simple Direct Extrusion Mount and my own series of Hero Me Duct remixes (thanks to HiccupHater for making me aware of this).
In this remix I have:
1.Increased rigidity of the direct drive mount and made it compatible with a revised version of my Hero Me base designs.
2.Improved wire management to Duct Base Design.Revised base to suit the direct drive mounting bracket.
3.I have also included…

This Thing is work in progress. If you want to see it adapted to a specific extruder provide me with STLs of said extruder and I will look into it. If you test any of the parts please let me know of the results and print settings, I am still concerned about rigidity of some designs that include a big stepper motor so make sure to adapt your print settings (4 wall layers and 50% infill should be a good starting point).

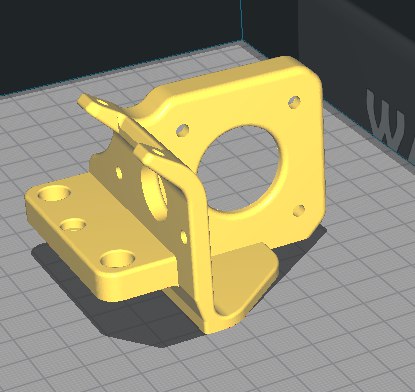

This mount is designed to be easiliy adaptable to a variety of extruders and not to interfere with a lot of available cooling ducts. For that reason it is mounted push fit to the spacers of the V-Slot wheels and not directly to the mounting plate. If you wish you can use an additional M3 screw and washer through the mounting plate to further secure it but it has not been shown necessary in my tests yet.
Currently available:
Ender 3/CR-10 Stock extruder (not tested)
E3D Titan extruder, suitable for pancake style steppers up to 27mm as it will hit the gantry with a bigger one. (not tested)
E3D Titan…
