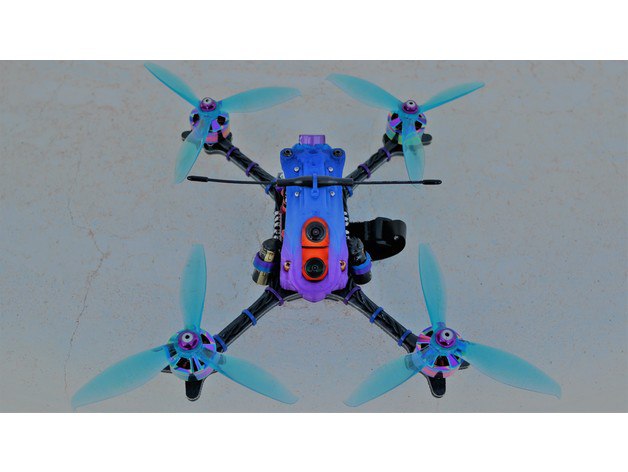

Floss 2 and 2.1 HD Race, Freestyle, and Long Range Canopy. Get rid of the heavy box cameras.
https://youtu.be/Tq_DZHdx4js
Fits a FPV micro on bottom up to 60 degrees and HD Micro on top up to 50 degrees. Just enough to get the props out of view.
Modular design fits m2 20x20mm stack on the canopy for the HD cameras. Immortal Tee style antenna on top. SMA adapter in back or lollipop mount. Cap holders for 5s and 6s builds. Wire armor that weighs only 1g and more durable than tape.
I use a Foxeer Predator v3 micro or Runcam Race Micro on bottom. More reliable I no longer have to worry about latency, screen freeze, and breaking expensive cameras during a crash.
Need 2 30mm screws, 4 m3 nylon lock nuts, 2 30mm standoffs, 4 m2 5-6mm motor screws, 4 m2 8mm motor screws, and 2 5-6mm standoffs to mount. Press nylon lock nuts into bottom front. 5-6mm standoffs press into front slots on the sides.
Flight one bolt a little tricky to fit on older bottom plate designs without the added holes.
Still a prototype please…
