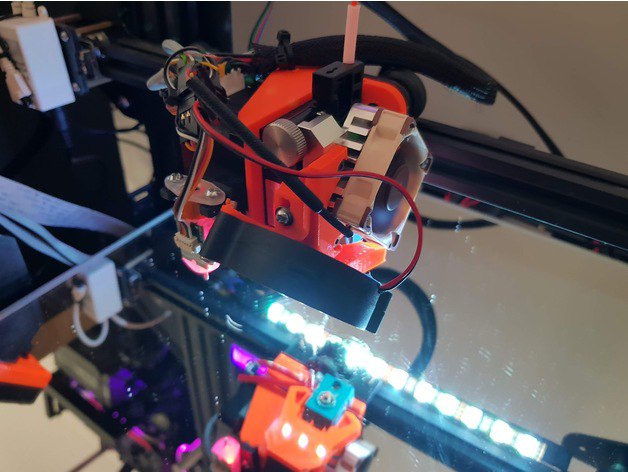

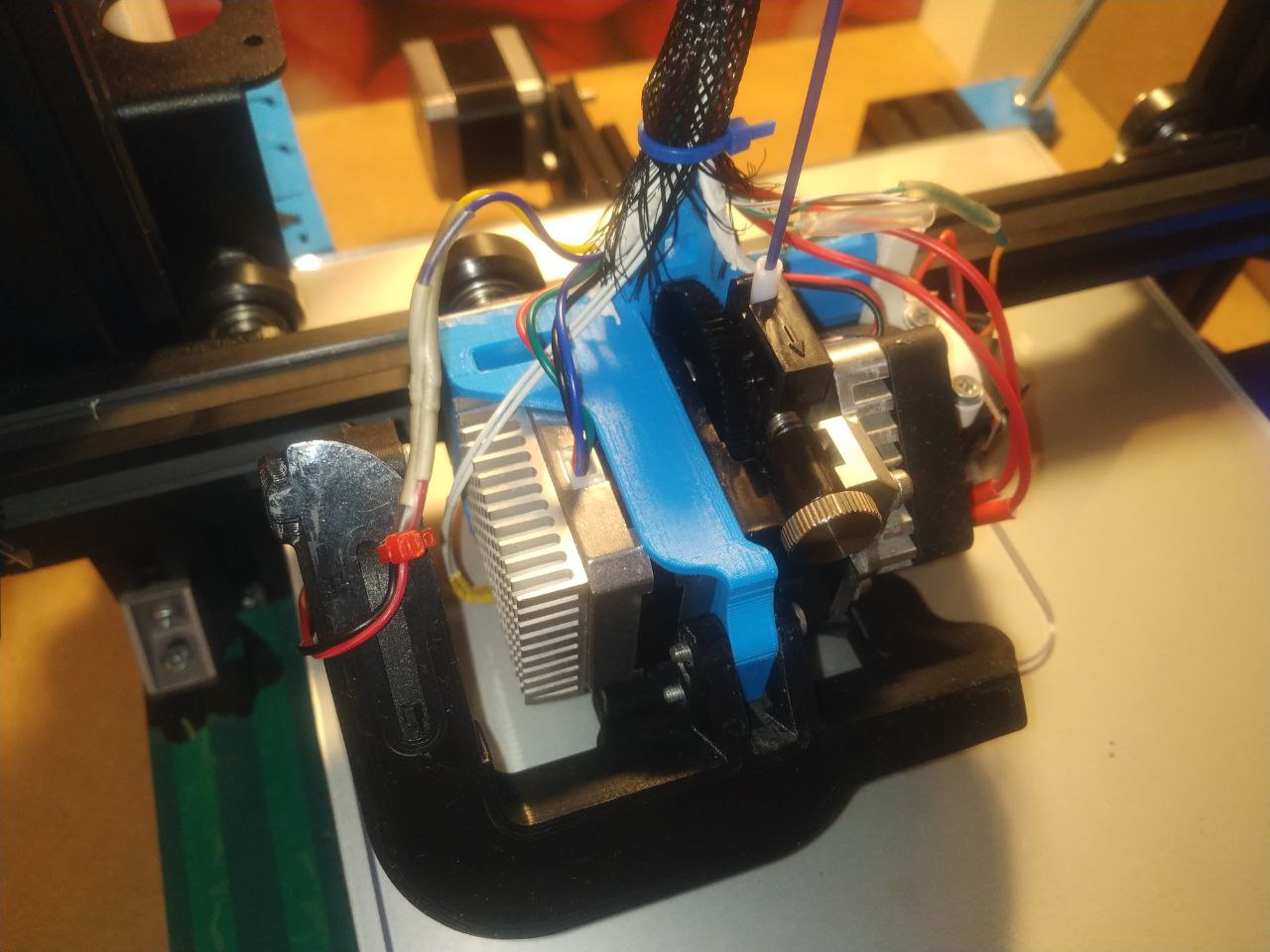

Added a railway sensor mount for the titan aero mount because i wasnt finding anything suitable without having use tons of support or a build in sensor mount.
The sensor mount is compatible with this railway mount system of this thinghttps://www.thingiverse.com/thing:2494642
I took the BL-Touch mount they included and pretty much just flipped it arround. this should work for other mounts as well (or you might just have to mirror them)
15.08.2019
Now with Quick toolchange support (https://www.thingiverse.com/thing:3369444)
You will need the "Screwable holder" as wellhttps://www.thingiverse.com/thing:3811812
Parts used
Cooling fanhttps://www.thingiverse.com/thing:3364313
BL-Touch mounthttps://www.thingiverse.com/thing:2494642

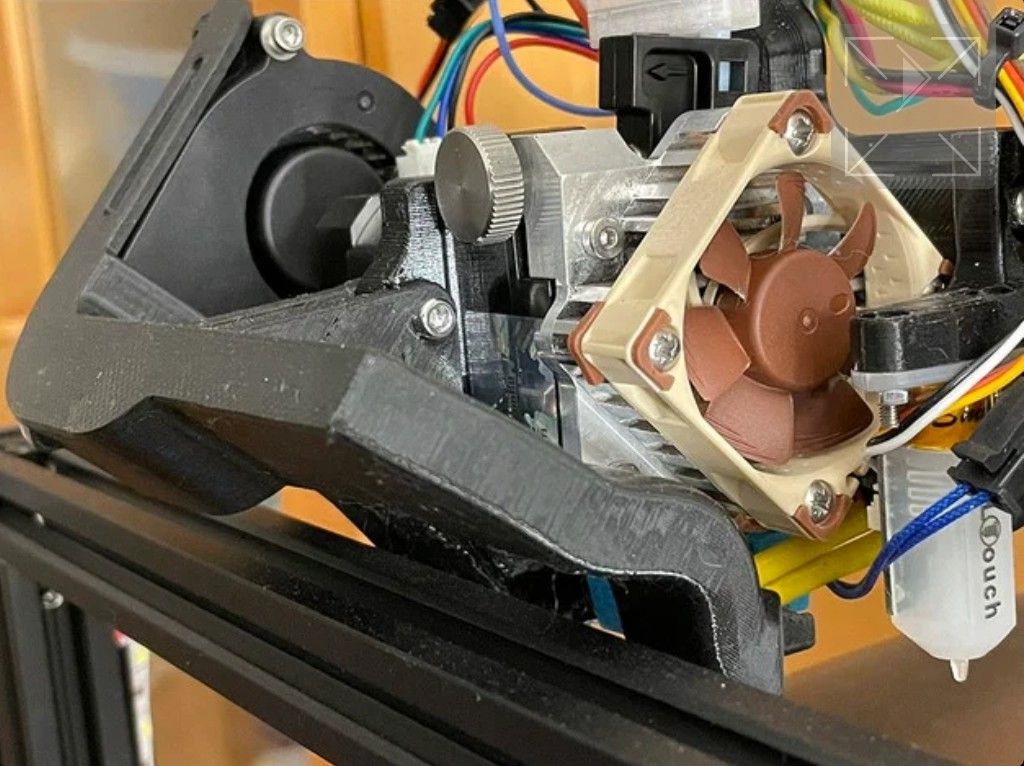

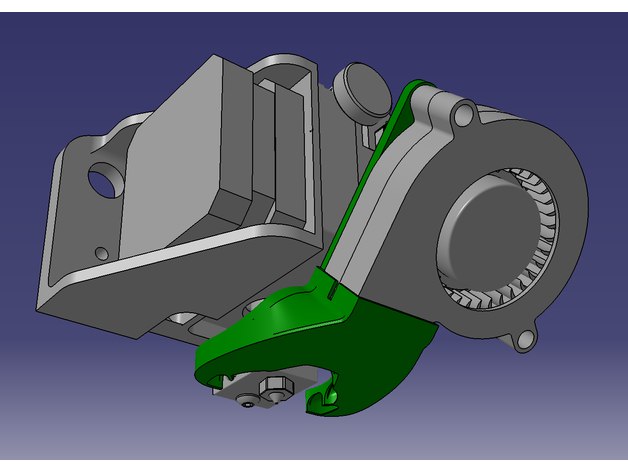

The basis of this duct is the project of the respected achmed20 (https://www.thingiverse.com/thing:3364313). The changes I made:
Reduced the height of the outlet channels, while increasing the area of ​​the outlet openings. This is done because in my case the original design touched the thermistor from the output side of the wires, which led to the melting of the part in this place. The total area of ​​all the outlet openings was even larger than the area of ​​the outlet window of a standard 5015-fan. This should favorably affect the throughput of the duct, because this eliminates excessive air pressure inside the product.
I also changed the shape of the internal structures of the air channels, making them smoother, to reduce the noise level.
The parts marked on the screenshot with the numbers "1", "2" are made more durable. Now the fan 5015 is flush against the base, and the edge "2" is no longer broken off during the installation of the fan.
Thanks achmed20 for a great idea! Other elements of his mounting system…
