The Red Effector is a magnetic rod effector for delta 3d printers. It integrates an angled effector for 15mm diameter neodymium magnets, a hot end cooler and a servo-actuated Z probe. The design also features holes for backup strings between the effector and the carriage. There are also slots for M3 nuts for securely attaching the hot end cooler to the effector.

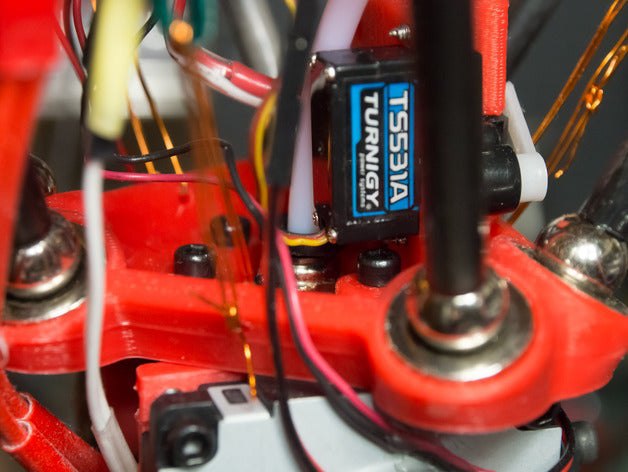

The current revision is designed to be used with an E3Dv6 hot end (or similar), one 40mm fan for hot end cooling and two 4515 blower fans for cooling the extruded plastic. A nano size RC servo is used to actuate the Z probe. An 2300 (or similar) opto endswitch is used for Z probing.
This is designed to go together with the Kossel Red Carriage (http://www.thingiverse.com/thing:1225501).
Original designs:
http://a360.co/1NPeWY1
http://a360.co/1NPeYiF
http://a360.co/1NPf0XW
The parts can be printed using either PLA or ABS filament, although the latter would be safer due to some of the parts being very close to the hotend. Screw everything together with M3…
