X gantry mounted LED light strip mount designed for the Ender 3 and Ender 3 Pro. Will also fit onto any 2020 or 2040 etc strip, so can fit other printers, or mount onto other T slot rails: ie can fit onto the vertical rails of the Ender 3 if desired.
LED strip mount simply clips into the rear T slot of the X gantry, and are angled a few degrees to direct light under the gantry. There are two versions, V2 has a fillet added on the under side for some extra strength/stiffness.
NOTE: I recommend sliding this in from the end of the channel rather than trying to press the clips into the channel: I suggest that trying to press them in will very likely break the mounting points!

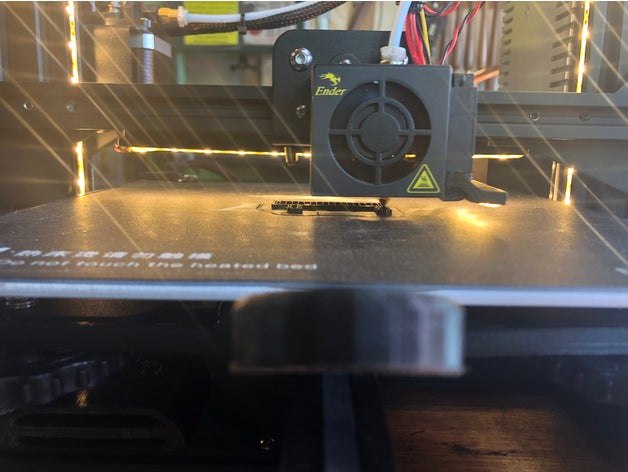

I installed LED light strips not only to the X gantry, but also inserted LED strips into both vertical uprights, and mounted an LED light strip onto the hot end: see below for links to these.
I took power from the Ender-3 PSU, and converted the 24V DC to 12V DC for the LED strips using a buck as per https://howchoo.com/g/odk2ngrhztd/how-to…
