UPDATED: 2019.02.16
Display working
Added pictures of the mod to have ender3 display connected with only one cable.
added lazy links to parts in aliexpress
configuration files added for firmware
case assembled for the first time. It seems to work fine. Need some tweaks for preparing for cover design.
UPDATED: 2019.02.15
Changed orangepi orientation. Should now fit properly.
Added assembly pictures.
Added support for both - LM2596 based and more powerful XL4015 modules

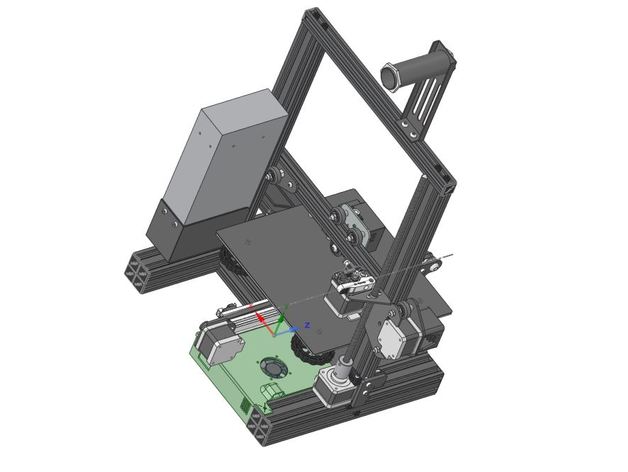

This is case for bigtreetech SKR v1.1 with orangepi zero.
This also houses two dc-dc converters to provide power for 12v (led strip, 12v fans) and 5v (orangepi, why not bigtreetech, 5v ledstrips if avail, webcam).
This setup give you full setup while being cost effective.
What you need (links in the end):
Bigtreetech SKR v1.1
Orangepi Zero, zero plus (H2+,H5)
LM2596 or XL4015 dc-dc converters (holes for both modules)
brass (or metal) distance spacers. 3mm thread, 5mm height. Typically used on pc cases to house the motherboard. You need to stack…
