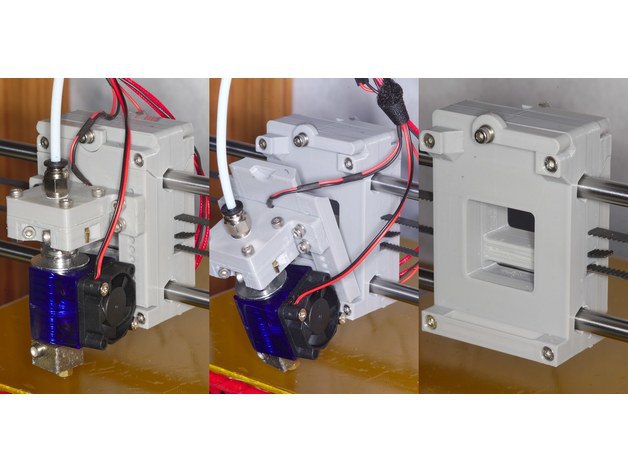

For quick-release attaching stuff to the front and rear of your x-carriage.

This is a rebuild of the Quick fit carriage system by lukie80https://www.thingiverse.com/thing:1670305
Not interchangeable/compatible. (afaik).


Designed specifically for the Anycubic i3 Mega: 60mm width,and for mounting on 50mm vertically spaced 8mm x-rods. Should also fit almost any vertical 50mm rail spaced printer with the same bearings and rod diameters.


The j-head mount included is for use with a piezo sensor, and auto bed leveling, but could just as easily be used as a regular j-head without the piezo.


Please note that I do use this currently, but my interests have diverged into similar carriages for a corexy system I'm building, so unless i find a need to add something to this system, or some part of the other system cascades back into this design (like the DB15/26 VGA connectors from lukie80's original, that I'm including in my corexy), this particular thing is on my backburner for now.

Also needs:
4 - M3x30mm bolts,…
