I have created a simple system that will allow you to make use of low tolerance ball screws on your 3D printer without creating Z Wobble artifact.

💧 My ball screw LUBRICANT recipe:
- LUCAS oil Stabilizer  ► https://amzn.to/3b2vz6H
- LUCAS 20W50 Synthetic  ► https://amzn.to/3ab1Ucu

You want to know more about the HevORT advanced DIY 3D printer?
WEBSITE  ► http://www.hevort.com

You want to learn and contribute to the project?
FORUMS  ►  https://forums.hevort.com/index.php
FACEBOOK  ► https://www.facebook.com/groups/hevort
DISCORD  ► https://discord.gg/begSWCeku8

🍺 SUPPORT ME   ► https://www.paypal.com/donate?hosted_button_id=LYP98YKUSLXN2&source=url
If you like my work and would like to support my efforts in making more open source 3D printing solutions, please consider a small donation.  Thank you.

MirageC

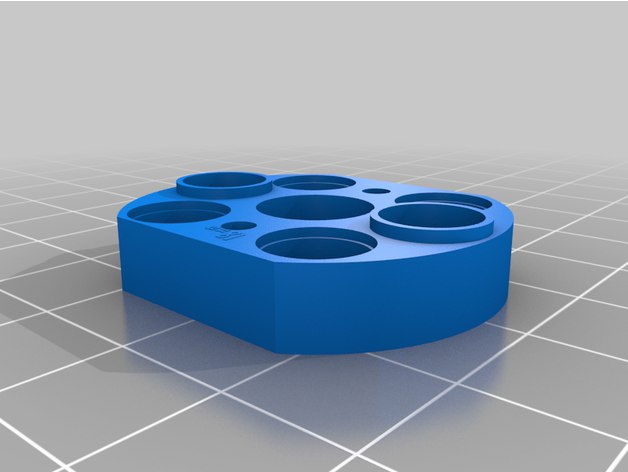

Remixed this for 8mm x 3 mm magnets(the are slightly stronger than the 6mmx 3mm magnets... and its what i had on hand). I am using larger ball bearings too, 6.3mm or 1/4 inch ball bearings (again because it is what i had on hand, but you could take apart a 608 skateboard bearing and use the ball bearings)
it utilizes 8 magnets per side. The 2 protruding holes take 2 magnets each. The 4 holes without the protrusion are where the ball bearings go.
the holes are a tight fit, and may require minor filing. i put it in a vise to make sure the magnets were fully seated.
the 16 mm version is for most printers. they use the nut that is round with 4 holes.
the 18mm version is for printers like the ender 3 and cr10. they use the nut like in my image with only 2 holes.
required parts:
4 x ball bearings; just about any size will work (approximately 2mm-8mm)
4 x screws, m3 x 8-10mm
16 x 8mm round magnets 3mm thick
