WARNING: Prototype, Testing phase. Work in progress. I do not have a V6 hotend, so I depend on the community to print, test and provide constructive feedback to help improve the system for others. If you are the typical person who just download, print and expect everything to work. This is not for you. Last thing I need is a raging on the comment section.
Now, if that did not turn you away, please continue reading.
This is the fan mount system for  Ender 3 series,  Ender 5 series that uses V6 hotend.
3010 fan for the hotend fan
5015 fan for the part cooling fan.
M3 screws ( amount to be updated later)
BLT offset X=-35 Y=0
All mounting holes are self tap.
Cable relief bracket need some more design work.
included the BLT bracket in step file so that others can edit it for different sensor.
All should be printed according the orientation.
Fan duct was a design by James Tongue, print according to orientation.
Need testers to:
Check if the 3010 fan placement is working and there is no heat creep issue
Check if…

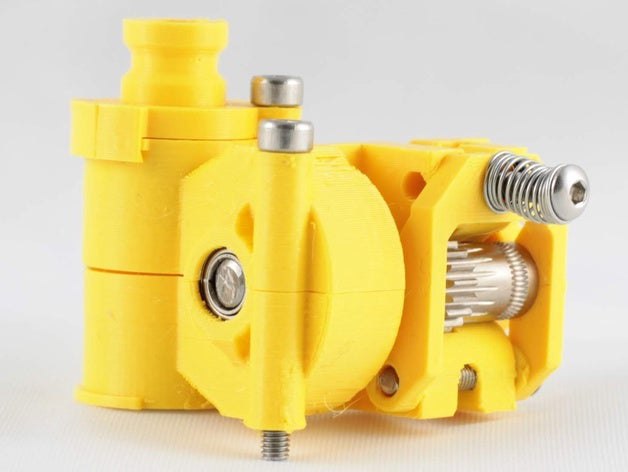

This is a dual drive remote direct extruder with Bondtech gears and custom 3d printed 30:1 worm gear. It is designed to combine dual drive extruder benefits with very low weight (compared to direct drive system), high resolution, much easier retraction tuning (compared to bowden system) and faster printing with flexibles specific for the remote direct system. So if you have some Bondtech gears laying around, now you can make your own copy just buing some minor parts and 3d printing everything else by yourself.
