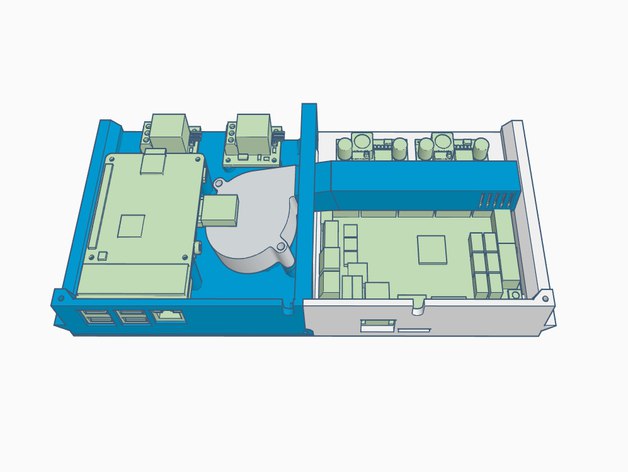

This is a remixed left side case for the excellent original case by TeachingTech.

The Pi mount has been flipped so the Pi is now mounted upside down above the 40mm fan. This makes access to the SD card much easier and keeps direct airflow on the Pi.


A mount for a 5015 blower fan has been added along with a heat-sink cover that should perfectly line up with the stepper driver heat sinks on the SKR 1.3 board. The angle also allows an HDMI cable to be plugged into the Pi if needed.

The mounts for the 2 relays have been spaced more evenly for more physical access to the relays.
The right side is a remix of the SKR 1.3 mount created by makermelissa that includes mounts for two buck converters: https://www.thingiverse.com/thing:3901224
See the remix by DavidETurner for a better cooling duct design and Raspberry Pi 4: https://www.thingiverse.com/thing:4149975
Use this guide for instructions on configuring Marlin to turn on the blower fan when the hot-end heats up using the second extruder connection: https://me…
