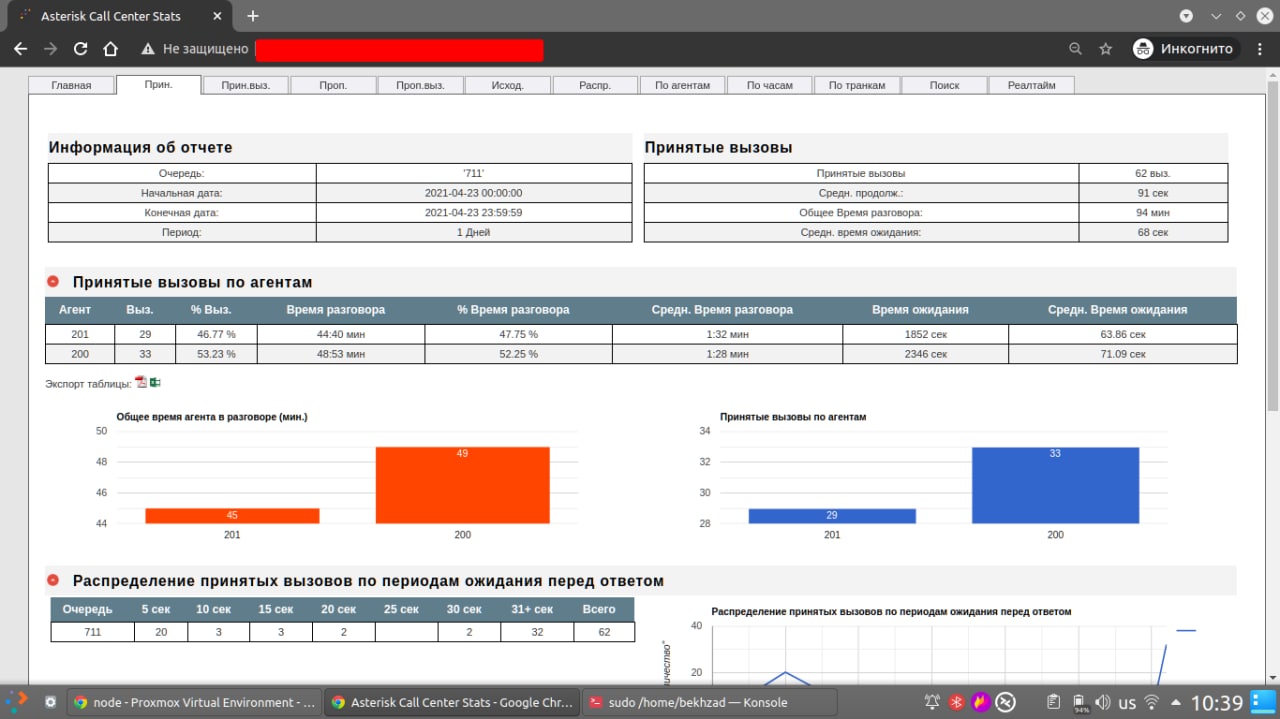

asternic call center stats lite

Buni ishlatib korganmisiz

Всем привет коллеги! Вопрос, у меня стоит Asterisk 16.0.1 который работает pjsip. Входящие настроил, работает нормально, только при исходящем не звонит, помогите пожалуйста

DTLS ECDH initialized (automatic), faster PFS enabled
-- Executing [87242235331@call-out:1] Gosub("PJSIP/511-0000000c", "sub-recording,s,1(511, 87242235331)") in new stack
-- Executing [s@sub-recording:1] Set("PJSIP/511-0000000c", "fname=2021/04/23-12:04-1619161451.24-511- 87242235331") in new stack
-- Executing [s@sub-recording:2] Set("PJSIP/511-0000000c", "monopt=nice -n 19 /usr/local/bin/lame -b 8 --silent "/var/spool/asterisk/monitor/2021/04/23-12:04-1619161451.24-511- 87242235331.wav" "/var/spool/asterisk/monitor/2021/04/23-12:04-1619161451.24-511- 87242235331.mp3" && rm -f "/var/spool/asterisk/monitor/2021/04/23-12:04-1619161451.24-511- 87242235331.wav" && chmod o+r "/var/spool/asterisk/monitor/2021/04/23-12:04-1619161451.24-511- 87242235331.mp3"") in new stack
-- Executing [s@sub-recording:3] Set("PJSIP/511-0000000c", "CDR(recordingpath)=/var/spool/asterisk/monitor/2021/04/23-12:04-1619161451.24-511- 87242235331.mp3") in new stack
-- Executing [s@sub-recording:4] Set("PJSIP/511-0000000c", "CDR(realdst)= 87242235331") in new stack
-- Executing [s@sub-recording:5] MixMonitor("PJSIP/511-0000000c", "/var/spool/asterisk/monitor/2021/04/23-12:04-1619161451.24-511- 87242235331.wav,bp,nice -n 19 /usr/local/bin/lame -b 8 --silent "/var/spool/asterisk/monitor/2021/04/23-12:04-1619161451.24-511- 87242235331.wav" "/var/spool/asterisk/monitor/2021/04/23-12:04-1619161451.24-511- 87242235331.mp3" && rm -f "/var/spool/asterisk/monitor/2021/04/23-12:04-1619161451.24-511- 87242235331.wav" && chmod o+r "/var/spool/asterisk/monitor/2021/04/23-12:04-1619161451.24-511- 87242235331.mp3"") in new stack
-- <PJSIP/511-0000000c> Playing 'beep.slin' (language 'ru')
-- Executing [s@sub-recording:6] Return("PJSIP/511-0000000c", "") in new stack
== Begin MixMonitor Recording PJSIP/511-0000000c
-- Executing [87242235331@call-out:2] Dial("PJSIP/511-0000000c", "PJSIP/87242235331@724210355") in new stack
-- Called PJSIP/87242235331@724210355
== Everyone is busy/congested at this time (1:0/0/1)
-- Auto fallthrough, channel 'PJSIP/511-0000000c' status is 'CHANUNAVAIL'
== MixMonitor close filestream (mixed)
== Executing [nice -n 19 /usr/local/bin/lame -b 8 --silent "/var/spool/asterisk/monitor/2021/04/23-12:04-1619161451.24-511- 87242235331.wav" "/var/spool/asterisk/monitor/2021/04/23-12:04-1619161451.24-511- 87242235331.mp3" && rm -f "/var/spool/asterisk/monitor/2021/04/23-12:04-1619161451.24-511- 87242235331.wav" && chmod o+r "/var/spool/asterisk/monitor/2021/04/23-12:04-1619161451.24-511- 87242235331.mp3"]
== End MixMonitor Recording PJSIP/511-0000000c

-- Executing [87242235331@call-out:2] Dial("PJSIP/511-0000000c", "PJSIP/87242235331@724210355") in new stack
-- Called PJSIP/87242235331@724210355
== Everyone is busy/congested at this time (1:0/0/1)
-- Auto fallthrough, channel 'PJSIP/511-0000000c' status is 'CHANUNAVAIL'

Смотри настройки транка

;Звонок на внешний номер
exten => _XXX.,1,Gosub(sub-recording,s,1(${CALLERID(num)}, ${EXTEN}))
same => n,Dial(PJSIP/${EXTEN}@724210355)
include => handup-sip


[sub-recording]
exten => s,1,Set(fname=${STRFTIME(${EPOCH},,%Y/%m/%d-%H:%M)}-${UNIQUEID}-${ARG1}-${ARG2})
same => n,Set(monopt=nice -n 19 /usr/local/bin/lame -b 8 --silent "${DIR_RECORDS}${fname}.wav" "${DIR_RECORDS}${fname}.mp3" && rm -f "${DIR_RECORDS}${fname}.wav" && chmod o+r "${DIR_RECORDS}${fname}.mp3")
same => n,Set(CDR(recordingpath)=${DIR_RECORDS}${fname}.mp3)
same => n,Set(CDR(realdst)=${ARG2});
same => n,MixMonitor(${DIR_RECORDS}${fname}.wav,bp,${monopt})
same => n,Return()

И?

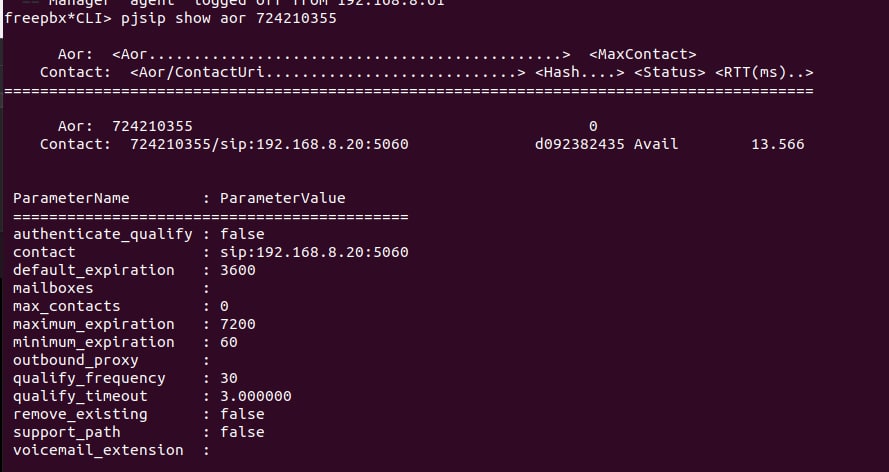

pjsip show aor 724210355

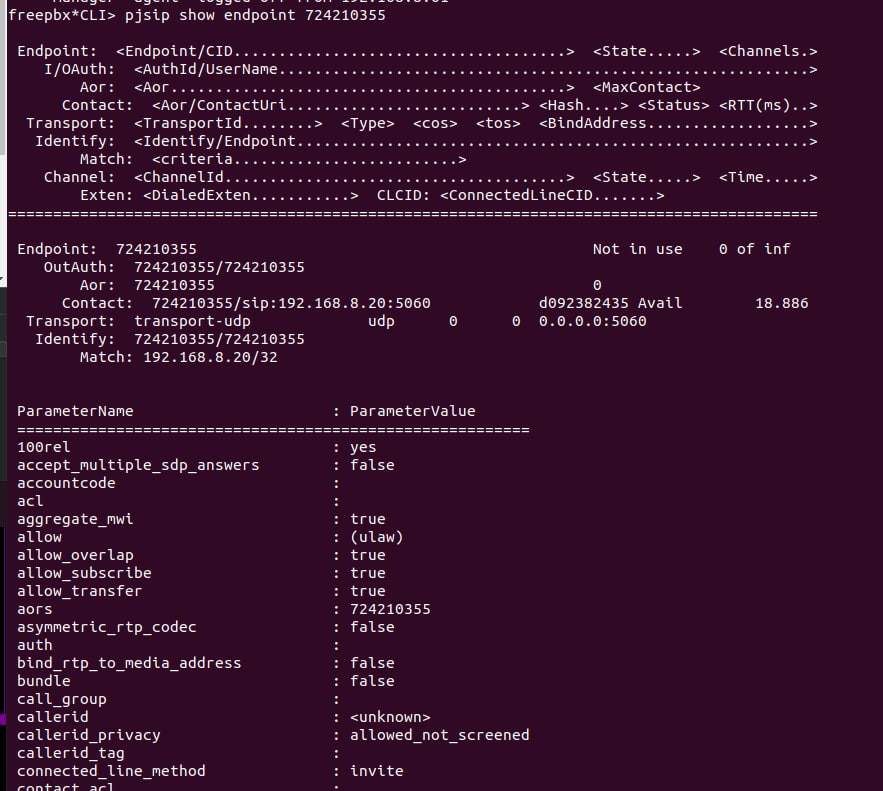

pjsip show endpoint 724210355

Проблема не тут. А в настройках транка провайдера

aor

endpoint

[724210355]
type=transport
transport=transport-udp
outbound_auth=724210355
server_uri=sip:192.168.8.20:5060
client_uri=sip:724210355@192.168.8.20:5060

[724210355]
type=auth
auth_type=userpass
password=
username=724210355
;realm=192.168.8.20

[724210355]
type=aor
contact=sip:192.168.8.20:5060
qualify_frequency=30

[724210355]
type=endpoint
transport=transport-udp
context=call-in
disallow=all
allow=ulaw
outbound_auth=724210355
aors=724210355

[724210355]
type=identify
endpoint=724210355
match=192.168.8.20

мой транк

192,168,8,20 - это шлюз какой-то?

Да, это Е-1 шлюз

попытка вызова есть, смотрите статус Е1 и q931 лог

нет, с Астериска не выходит

Вот тут есть попытка дозвона. От шлюза приходит CHANUNAVAIL
